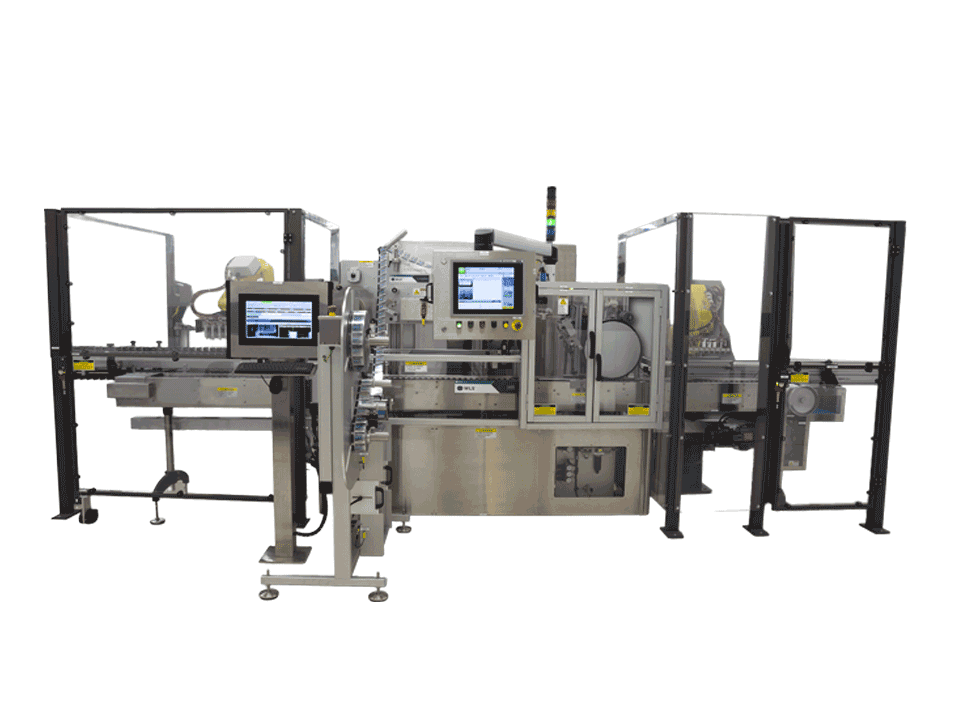

Horizontal Roller In-Line Labeler HR
Ultra-High Speed, Precise Labeling
The WLS HR in-line labeler is designed for the application of a film or paper pressure sensitive label onto round containers and medical devices. The labeler combines a modular platform with a horizontal roller track design that references the container sidewall for consistent and precise label application, making it the perfect solution for medical device labeling. The HR fully synchronized electronic drive train also allows for ease of operation and fast changeovers via HMI-based recipe control. This construction ensures years of trouble-free operation at highest efficiency levels with minimal maintenance requirements.
The HR can be configured with a variety of options such as single or redundant label heads, label coding and inspection including serialized codes, patented Reconciler feature, Assurance Labeling, and 21CFR Part 11 and CE compliance. The WLS patented Reconciler removes, counts and rewinds rejected labels prior to their application onto a container. The WLS Assurance Labeling holds a container until a good label is available making sure that every container is properly labeled.
Backed by WLS' reputation of quality, impeccable service and customer care, and industry leading extended warranty coverage, the HR is built to meet the most challenging labeling demands.
FEATURES
- Left hand or right hand discharge
- cGMP compliant construction
- Stainless steel clad base
- Cat 3 or better guarding
- Synchronized servomotor-driven roller track, and vacuum drum drives
- Vacuum drum label dispenser (for continuous high-speed web handling)
- Reject station
- Boom mounted, user-friendly and password protected HMI
- Positive track and reject
- No proprietary electronics
OPTIONS
- Container tooling
- LA-2000 label applicator
- Integration of all major code printing (thermal ink jet, thermal ribbon and laser) and vision inspection brands
- Serialization capable (for label code)
- Patented Reconciler (for automatic rejected label removal & tracking)
- Assurance Labeling (to ensure every container is properly labeled)
- OEE (Overall Equipment Effectiveness) and other custom HMI screens
- Data collection
- Remote Ethernet access (for long distance diagnostics)
- 21CFR Part 11 compliance
- FAT/DDS/IQOQ documentation
- UL, Seismic or CE field evaluation
SPECIFICATIONS
- Container Type:
- Round glass, metal or plastic
- Cylindrical medical devices
- Container Diameter:
- 3/8" (10mm) to 5" (127mm) *
- Container Maximum Length:
- 8" (203mm) *
- Speed:
- Up to 1200cpm
- Label Accuracy range:
- Vertical Position: Dependent on label roll slitting accuracy
- Skew: Dependent on container sidewall vertical accuracy
* Unique shapes upon request
